ZAApp - the Zander App

Do not miss any news with the brand new Zander App. The App can be downloaded for free in the Android Play Store.
Just search the name "Zander Aachen":

https://play.google.com/store/apps/details?id=test.android.zander.aachen

Our main goal is to interact, communicate more intensive with our partners and to provide actual information regarding new products, versions, etc...

As a first step you´ll receive push up news if you´d like as soon as we´ve published them on our homepage.

So please test our app (upward compatible from Anroid 5.0).
We are looking forward to your constructive feedback.

ZX20 Applications

The following sample programs and applications have been realized with the ZX20 group:

• Camshaft controller without cycle time
• Fault monitoring system with first-up signalling
• Program control for neon sign
• Barrier control
• Sensor-aided high speed sorting
• Example stepper motor controller
• Free programmable high-speed  input-debouncing

Detailed description of the applications: ZX20 applications

How to manage successfully the change from the ST program EX_PRESS 4 to EX_PRESS 5
Transferring the ST-program EX_PRESS 4 to EX_PRESS 5

An exquisite desciption by Prof. Meier of the advantages of the FPGA technology in controllers (in german language only):

Article of Herrn Prof. Mayer

Did we spark your interest? – the programm codes in ST (structured text) according to IEC 61131 is available free of charge on request. All programs can be easily opened with the demo version of EX_PRESS 5

Visit our booth 7-191 in hall 7 at the sps ipc drives in Nuremberg.

For date arragements, entry voucher or questions please contact Mrs. Friehe:
c.friehe@zander-aachen.de

For your safety, we walk over fire!

ZANDER Aachen is your expert for safety-related solutions in the process industry. The prerequisite for this level is sufficient knowledge of the normative framework.

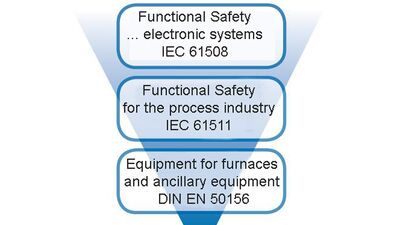

Normative framework requirements
The normative framework distinguishes between a plant of the process industry and a machine. Depending on it the respective requirements are described in the particular standard. Machine manufacturers or control cabinet manufactureres in the plant construction are often uncertain wether the safety review has to be conducted for a machine or a processing facility.

Zander offers you all relevant standards for the process and the machine industry
(EN 50156-1, EN 746-2, DIN EN 61511-1, DIN EN 13849-1, DIN EN 62061).

Our products can be found here.

Our high speed controller ZX20 is now available with variants with integrated PROFINET (ZX20TP) and EtherCAT (ZX20TC) for the system integration:

• Determinisitic speed without cycle time and jitter with FPGA-Technology
• Free programming of the PLC with structured text
• No additional hardware necessary

We are proud to accompany and support the professional women tennis team of Blau-Weiss-Aachen with their next successful season. The young team is peppered with players, who practise and play for the team since their childhood. A unique sportive success with three advancements into higher classifications too, the team played in the first german tennis devision in 2014 and 2015. These allows the spectators to join world class tennis matches with several WTA Top 50 players.

The familiar atmosphere,the sustainable team and young professional development are in accordance with our philosphy.

For more information about play dates or tickets please visit the website of Blau-Weiss-Aachen.

ZANDER safety relay in a control cabinet without needing a screwdriver

Now available are plug-in tensile spring terminals for the safety relays of the complete SR- series produced by ZANDER AACHEN. They enable an easy wiring with “Push-In” technology. For devices with dual pin assignment, there are dual tensile spring terminals EKLT4 available.

Spring terminals provide an advantage for the installation as well as in case of replacement compare to “traditional” fixed terminals.

Already the plug-in screw terminals EKLS4 provide the ability of a clear wiring and the avoidance of failures by the wiring in case of replacement. This saves time and money!

The expansion of the series to plug-in terminals with “Push-In” technology is the next consequent step. Simple push in of the wires in the connectors without screwing and other tools provides a further saving of time during installation.

The terminals enable a wiring with cable cross-section from 0.2 to 1.5 mm². This is effective for rigid wire as well as for flexible wire with wire end ferrule.

Compact Safety Coupling Relay up to PL e/ SILCL 3:

The new safety coupling relay SK3D from Zander is convincing through high performance with simplest wiring (saving 60% wiring and costs compared with a standard safety relay in a similar application), all in a compact housing of just 22.5 mm. The wiring is possible with fixed or plug-in screw terminals or with plug-in spring-cage terminals. Cyclical self-monitoring saves the feedback circuit to a safe PLC. SK3D has 3 safety contacts (NO) and 1 auxiliary contact (NC). Furthermore 230 VAC- and 24 VDC-signals can be switches independently.

With a maximum switching load of 5 A for each disabling contact at AC-15 250 V and 4 A with DC-13 24V even greater loads can be reliably switched.

Thanks to an input filter the SK3D can be operated directly on clocked outputs of safety controllers and sensors. To apply the SK3D also in existing installations variants for 24 VDC operating voltage as well as for 115 VAC and 230 VAC are available.

The SK3D meets the highest safety requirements Cat 4 / PL e / SILCL 3 according to EN ISO 13849-1 as well as IEC 62061 and is therefore perfectly suitable for contact extension and contact reinforcement of safety controllers. Additionally the SK3D is certified for the use in furnaces and ancillary equipment in continuously mode according to EN 50156-1 and EN 746-2 for industrial thermoprocessing equipment and thus also designed for applications in the process technology.

Further informations can be found here and here.

It is time:

for our safety Mini Time Controller SCB – new to the market!

• Designed for furnaces and ancillary equipment in continuous operation according to EN 50156-1
• Attains highest safety requirements category 4 / PLe and SILCL3 according to EN ISO 13849-1 and EN 62061
• Flexible: Time-delayed or non-time-delayed with on-delay or with off-delay
• Exact parameterisation within an accuracy of 0.1 sec via push/rotary button and LED display
• Set time delay from 0.1 sec up to 99 h

Code-MZ is a coded tamperproofed safety switch for the process protection in machinery and plant engineering.

The ZCode-MZ has been developed to provide a realiable door interlock. Coding is achieved by using radio frequency (RFID) and magnetic technology, both principles need to be satisfied for the switch to operate safely. This redundant diverse structure provides the highest degree of anti-tamper, virtually impossible to override. The different housing materials allow the use in almost any environments, including high pressure cleaning following contamination from foreign particles. (e.g. Pharma and Food Industry).

The Stainless Steel 316 version of the ZCode-MZE incorporates a Stainless Steel magnet and has an IP69K ingress protection rating making it suitable for CIP and SIP processes. ZCode-MZ has a high specified polymer body material.

Suitable and certified for the highest safety standards according to EN ISO 13849-1, EN ISO 14119 and EN 62061.

• IP 69K for ZCode-MZE, IP67 for ZCode-MZ
• RFID- und Magnetic Technology
• 2 NC safety outputs, 1 NO auxiliary output
• Connect up to 20 switches to one standard safety relay
•  Holding forces up to 1500 N
• Master- und Unicode available
• Connect up to 20 switches to one standard safety (e.g. ZANDER SR-Series) or to one safety controller (e.g. ZANDER TALOS^®).
• Up to PL e, Cat. 4 according to EN ISO 13849-1 and SILCL 3 according to EN 62061
• 2 Status LED`s.
• Compact Housing 96 x 64 x 58 mm

For further information, please visit ZCode-MZ.
